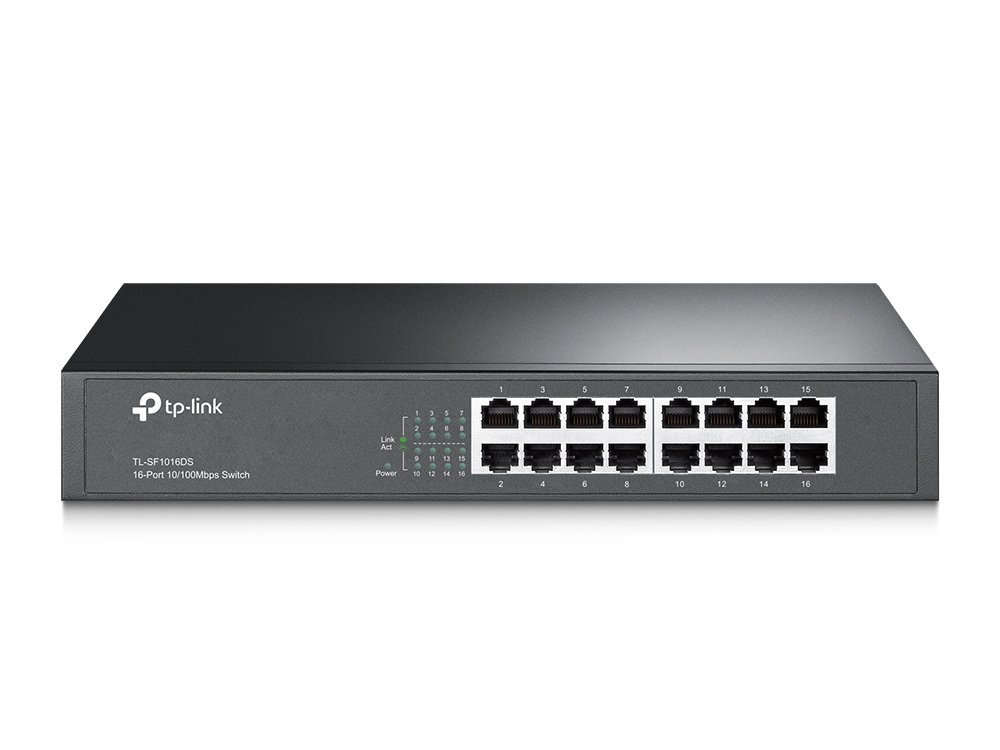

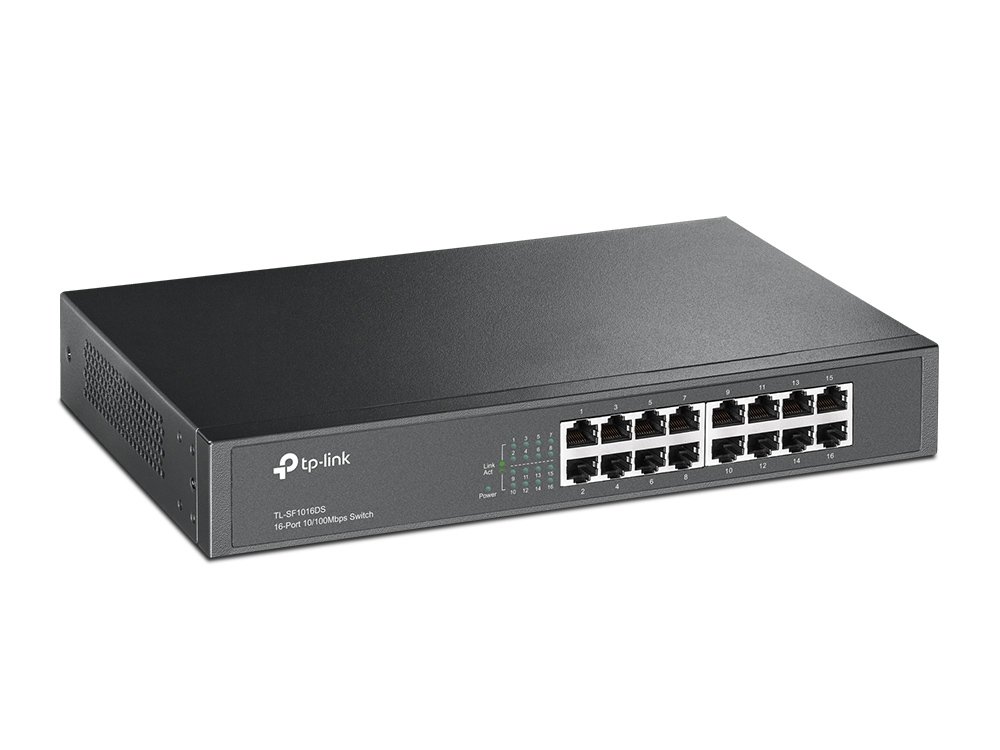

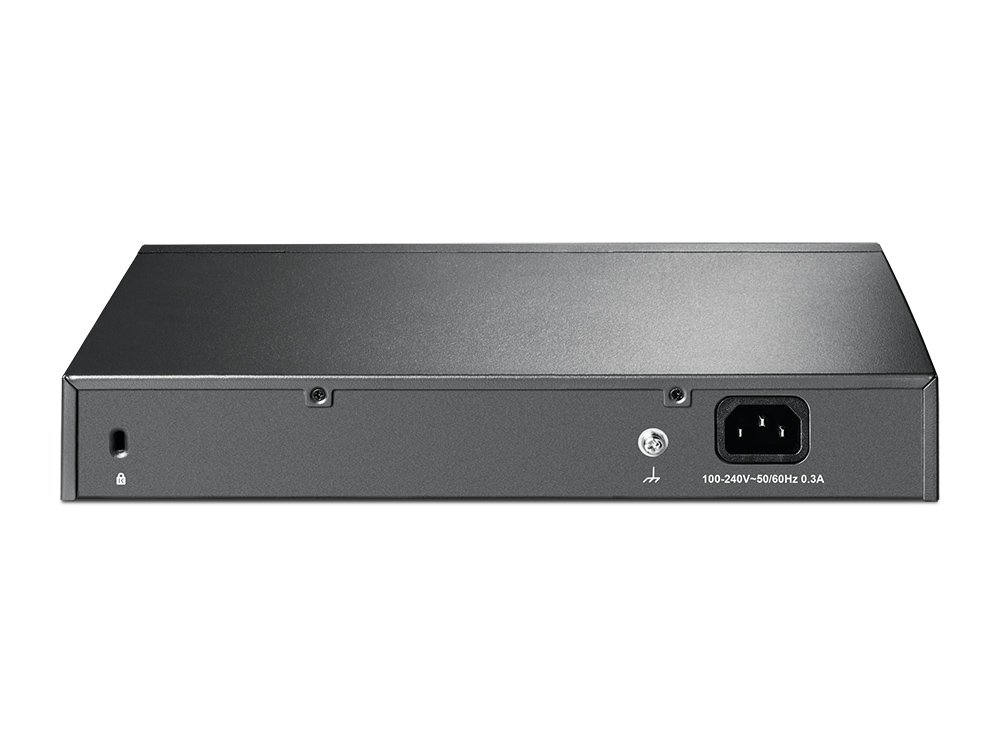

TP-LINK TL-SF1016DS 16-Port 10/100Mbps Switch
คุณสมบัติสินค้า:
หมวดหมู่ : Switch , 10/100 Switch , BRAND , TP-LINK ,
Share
- 16 10/100M RJ45 ports.
- Innovative energy-efficient technology saves power up to 75%
- Supports MAC address self-learning and auto MDI/MDIX.
- Standard 13-inch steel case.
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Interface | 16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 2.23W (220V/50Hz) |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in. (294×180×44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 2.06W(220V/50Hz) |
| Max Heat Dissipation | 7.03BTU/h |
| PERFORMANCE | |
| Switching Capacity | 3.2Gbps |
| Packet Forwarding Rate | 2.38Mpps |
| MAC Address Table | 8K |
| Buffer Memory | 2Mb |
| Advanced Functions | Green Technology 802.3X Flow Control |
| Green Technology | Innovative energy-efficient technology saves power up to 75% |
| Transfer Method | Store-and-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | 16-Port 10/100Mbps Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kit Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
