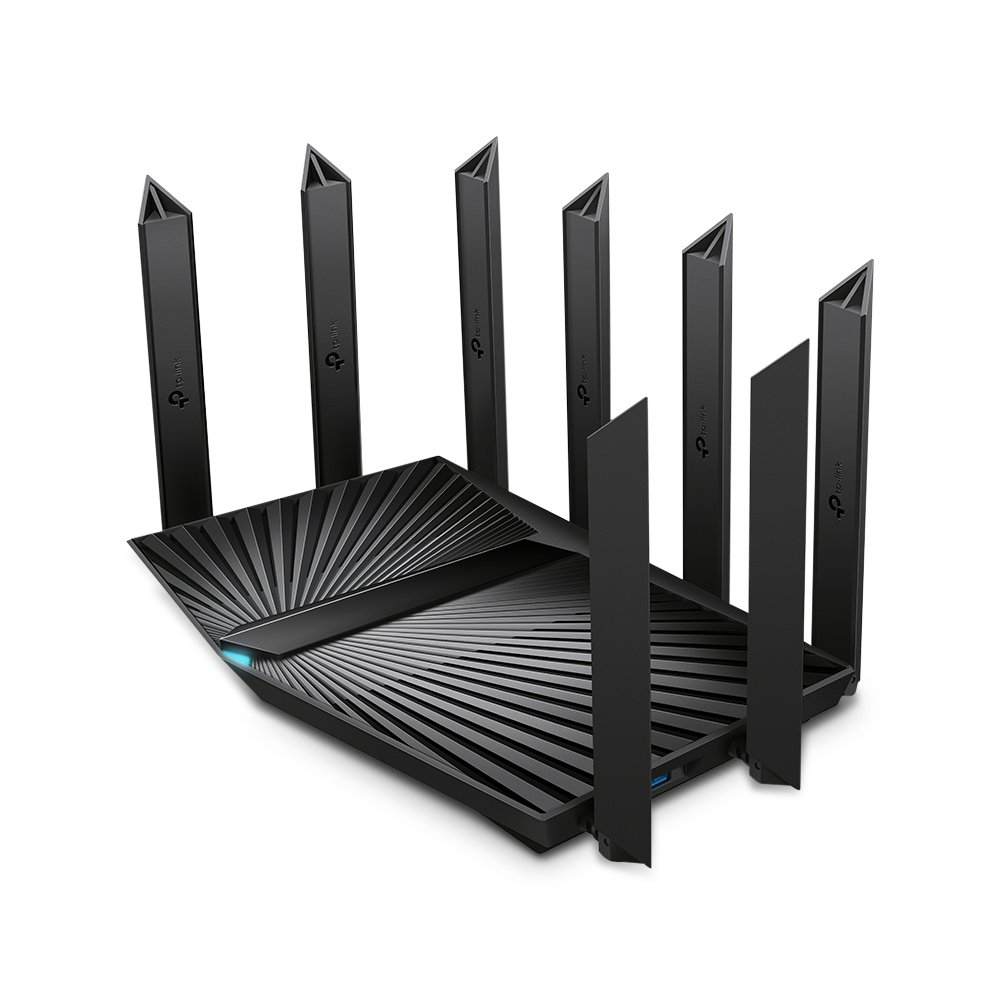

TP-LINK Archer AX90 AX6600 Tri-Band Gigabit Wi-Fi 6 Router
คุณสมบัติสินค้า:
หมวดหมู่ : Router , Wireless AX Router , BRAND , TP-LINK ,
Share
- Faster AX6600 Tri-Band Wi-Fi - 4804 Mbps (5 GHz) + 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- Ultra Connectivity - 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports และ 2 USB เพื่อเพิ่มความยืดหยุ่นในการใช้งานมากขึ้น
- Maximized Coverage - 8 เสาสัญญาณ คุณภาพสูงที่มาพร้อมเทคโนโลยี Beamforming เพื่อเพิ่มความมั่นใจในประสิทธิภาพสัญญาณให้ครอบคลุมมากยิ่งขึ้น
- More Devices with Less Lag - เทคโนโลยี OFDMA และเทคโนโลยี MU-MIMO รองรับได้หลากหลายอุปกรณ์ก็ไม่ทำให้สัญญาณสะดุด
- TP-Link HomeShield - ปรับปรุงระบบความปลอดภัยป้องกันทุกภัยคุกคามจากอินเทอร์เน็ต
- Powerful CPU - processor 1.5 GHz quad-core ทำให้มีความรวดเร็วในการรับ-ส่งข้อมูล รวดเร็วและไหลลื่นในทุกอุปกรณ์
- Refined Security—ปรับปรุงการรักษาความปลอดภัย ยากต่อการเจาะเข้าสู่เครือข่ายโดยการเดารหัสผ่านด้วย WPA3
| WIRELESS | |
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX6600 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 4 Bedroom Houses 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
| WiFi Capacity | Very High Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
| Processor | 1.5 GHz Quad-Core CPU |

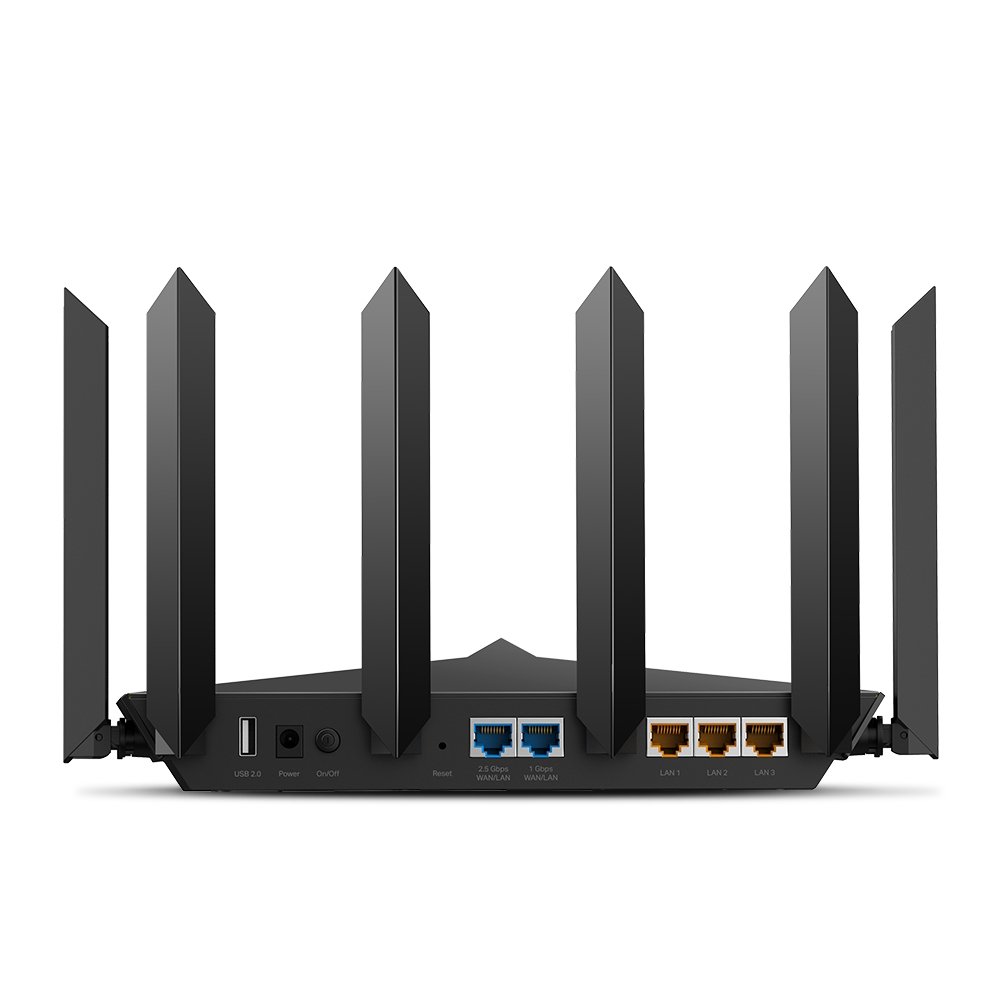

| Ethernet Ports | 1× 2.5 Gbps WAN/LAN Port 1× 1 Gbps WAN/LAN Port 3× 1 Gbps LAN Ports |
| USB Support | 1× USB 3.0 Port 1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
| Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
| Power | 12 V ⎓ 3.3 A |
| SECURITY | |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1× 5 GHz-1 Guest Network 1× 5 GHz-2 Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| SOFTWARE | |
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP Virtual Server |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage |
| PHYSICAL | |
| Dimensions (W×D×H) | 12.2 × 8.1 × 6.8 in (311 × 207 × 174 mm) |
| Package Contents | Wi-Fi Router Archer AX90 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power | CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } |
| WiFi Reception Sensitivity | 2.4GHz: 11n HT20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS11:-62dBm 5GHz-1: 11ac VHT20 MCS0:-92dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 5GHz-2: 11ac VHT20 MCS0:-95dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 11ax HE160 MCS11:-53dBm |
